Features:
- BurnMaster PCB kit for portable cart flasher build
- Supports Game Boy cartridge reading and writing functions
- Includes PCB, display and battery for core system
- Compatible with GB, GBC and GBA cartridge formats
- Requires additional parts to complete assembly
Description:
Build your own portable cartridge reader and writer with the BurnMaster PCB kit from Funnyplaying. This kit provides the core electronics needed to create a handheld device capable of reading, backing up and writing Game Boy cartridges.
Designed for use with Game Boy, Game Boy Color and Game Boy Advance cartridges, the BurnMaster allows you to back up save data, archive game data or write to compatible flash cartridges. The PCB kit forms the central part of the system, providing the processing, display and power components required for operation.
This listing is for the PCB kit only. Additional components are required to complete the build and create a fully usable device.
Further info:

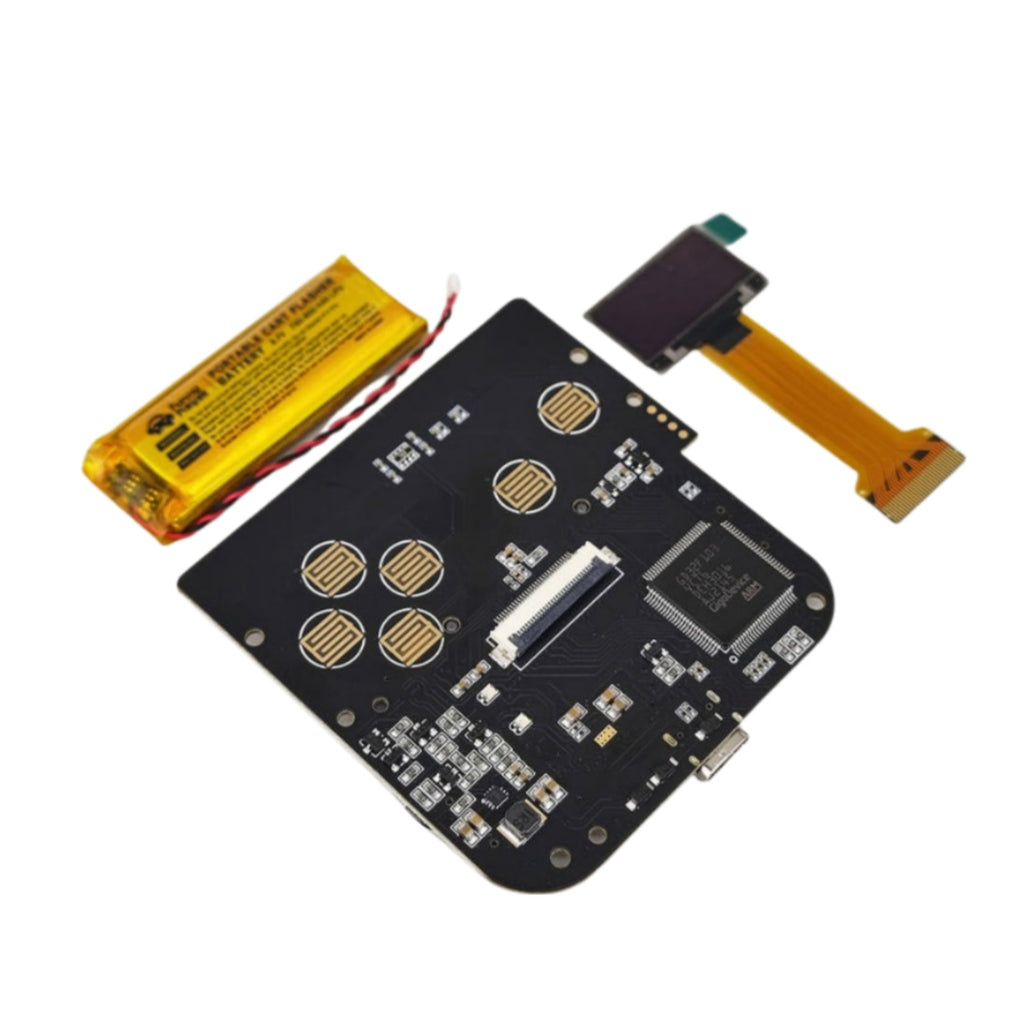

The BurnMaster PCB kit includes the main circuit board, display and battery required for portable operation. It supports reading original cartridges and working with compatible flash carts for writing and development purposes.
To assemble a complete unit, the following parts must be purchased separately:
- Shell
- Cover
- Game Boy Pocket style buttons
- Rubber contact pad
These components are required to fully assemble and operate the BurnMaster device.
The system uses a microSD card (not included) for storage and firmware updates, typically formatted to FAT32.
Download the latest firmware from github
here
Installation tips:
- Ensure all required parts are available before starting assembly
- Handle the PCB and display carefully during installation
- Check ribbon and connector alignment before powering on
- Fat32 is required for operation (FAT32 supports cards up to 32GB)
- Install the firmware by placing the file 'update.bin' in the root directory of the SD card and start the BurnMaster, run the update, after this the update file will be automatically deleted and the burnermaster will be ready.
FAQ:
Q: What is included in this kit?
A: This listing includes the BurnMaster PCB, display and battery which form the core electronics of the device.
Q: What additional parts do I need?
A: You will need a shell, cover, buttons and rubber pad to complete the build and use the device.
Q: What does the BurnMaster do?
A: It allows you to read, back up and write data to Game Boy cartridges, including use with compatible flash carts.
Q: Does this work with all Game Boy cartridges?
A: It is compatible with Game Boy, Game Boy Color and Game Boy Advance cartridges, although functionality may vary depending on cartridge type.
Product safety:
- Choking hazard, small parts, keep out of reach of children
- Electronic components should be handled with care during assembly
- Avoid short circuits or incorrect connections during installation
- Contains lithium battery, do not puncture or damage
- Do not use if the battery becomes swollen, damaged or leaking
- Dispose of batteries at a suitable recycling facility, do not dispose in household waste
This is a third party product and is not manufactured, sponsored, endorsed or licensed by Nintendo.
