Features: - Noctua fan mounting kit for Sega Dreamcast
- Manufactured in the UK under license from Laser Bear.
- Includes a fan duct designed for optimal air flow
- Also includes a replacement lid latch needed for this mod
- Compatible with Noctua fan for Sega Dreamcast. (fan not included)
Description: This fan installation kit is designed to mount a high airflow quiet fan in the place of the original stock Dreamcast fan, it was designed by Laser bear industries and has become the standard design for Noctua fan installs.
Note: This kit is not compatible with early revision Dreamcast consoles know as VA0, these systems are fairly rare outside of Japan, if you have a silver or grey fan attached to a metal heatsink inside your console then you own a VA0 model.
It is specifically built for the Noctua NF-A4x10 5V fan.(not included)
The lid latch also has to be changed when installing this fan mod to allow enough room for the fan and duct to fit inside the console.
Improvements have been made to the lid latch to make this stronger, included in the kit is a short and long part two of the latch which makes this kit more compatible with 3rd party shells (Short latch for OEM and Long latch for 3rd party)
This mod shines in systems with GDROM emulators like the USB-GDROM and the GDEMU and MODE, it makes those systems nearly silent, it may not do much to systems with the original disk drive still installed as the disk drive is louder than the cooling fan.
The kit includes:
3d printed fan duct

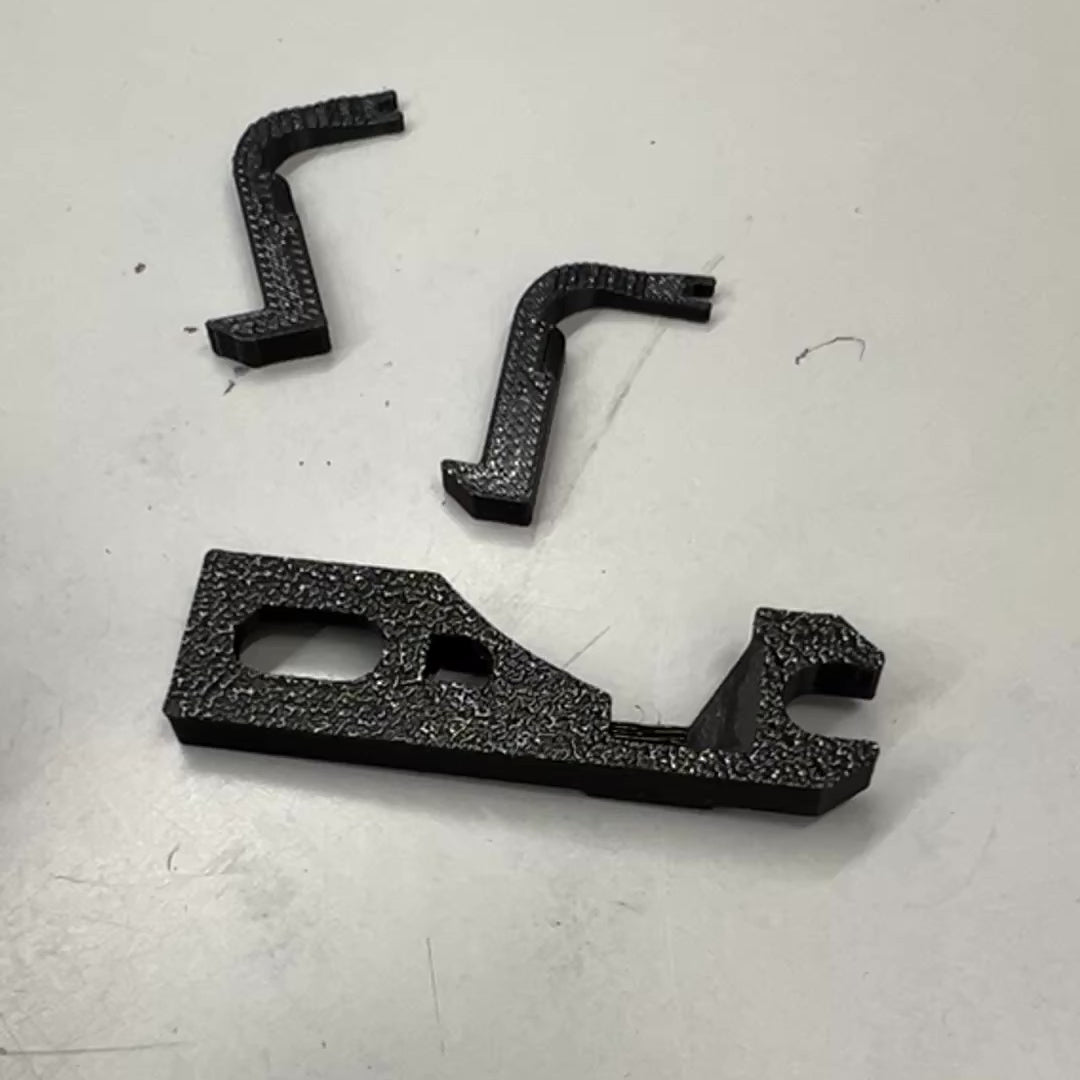

3d printed two part replacement door release latch
- Latch part one is the larger latch part screwed into the console
- Latch part two has two options, one with a small hook latch for OEM shells, long hook latch is for some 3rd party shells.
(Part two needs to be inserted through the hole on part 1)
You will need:A compatible Dreamcast console
A Noctua Noctua NF-A4x10 5V (3pin only)
Adapter cable for the Noctua fan
Licensing:
This design is produced under a retro commercial license agreement via a printables subscription, supporting the creator Gregory Collins of Laser Bear Industries.
Retro Commercial Licenses - Models for commercial use - Permission to use physical prints of selected exclusive models for commercial purposes during active membership.
If you want to print your own and support Greg you can find his printables account and subscription offers here: https://www.printables.com/@Collingall
Our Printables account can be found here: https://www.printables.com/@ZedLabz_312021
