GameCube parts and mods, the modder-focused upgrade and repair hub for the DOL-001.

Browse GameCube parts by upgrade type

GameCube HDMI mods. KNJN Pluto 2 ii internal HDMI with GCVideo, Eon GCHD MK-II external, Retro-Bit Prism
GameCube ODE / disc replacement. Picoboot pre-flashed Pico, Helder Game Tech quick-solder flex cables
GameCube USB-C power. Robot Retro USB-C PSU replacement
GameCube cooling. Noctua NF-A4x10 FLX 12V replacement fan
GameCube controllers and parts. Retro Fighters BattlerGC Pro wireless, Z-Sticks, metal thumbsticks
GameCube replacement parts. Heatsink thermal pads, AV cables, internal components

The Nintendo GameCube (DOL-001) launched in 2001 and is one of the busiest current modding scenes. Three projects dominate the GameCube mod ladder: HDMI output (the GameCube's analogue port doesn't reach modern TVs cleanly), Picoboot ODE (replacing the optical drive with SD-loading via a Raspberry Pi Pico), and quieter operation (Noctua fan + USB-C PSU). ZedLabz stocks the KNJN Pluto 2 ii internal HDMI board, Eon's GCHD MK-II external HDMI, Retro-Bit Prism, Picoboot Pico boards, Helder Game Tech quick-solder flex ribbons, the Robot Retro USB-C power board and the Noctua fan.

Quick picks for any GameCube build

If it's your first GameCube mod: the Eon GCHD MK-II 480p external HDMI adapter, plug-and-play via the digital AV port (DOL-001 only, not DOL-101). No console opening required.
The everyday build: Picoboot ODE (Pico + flex cable bundle) for SD-loading, Eon GCHD MK-II for HDMI, Retro Fighters BattlerGC Pro wireless controller. Fast loads, clean HDMI, modern controller.
The dream rig: KNJN Pluto 2 ii internal HDMI with USB-C, Picoboot ODE, Robot Retro USB-C PSU and a Noctua silent fan. Internal HDMI delivers true digital output; the rest is the quiet, fast modern GameCube experience. Soldering experience needed.

The GameCube mod ladder

External HDMI (Eon GCHD MK-II): the most-popular GameCube HDMI option. 480p HDMI through the digital AV port (DOL-001 boards only, the digital port is missing on DOL-101 revisions). No soldering. Stocked in Black, Purple, Spice Orange and Silver.
Picoboot ODE: replaces optical disc loading with SD-card loading via a Raspberry Pi Pico flashed with Picoboot firmware. ZedLabz stocks the Makeo Picoboot pre-flashed Pico, the Picoboot Pico bundle and Helder Game Tech quick-solder flex cables for both DOL-001 and Rev 1.4 boards. Soldering needed for the flex cable.
Robot Retro USB-C PSU: replaces the original GameCube power brick with a USB-C powered internal PSU board. Plug a USB-C power supply into the back; reduces the cable mess.

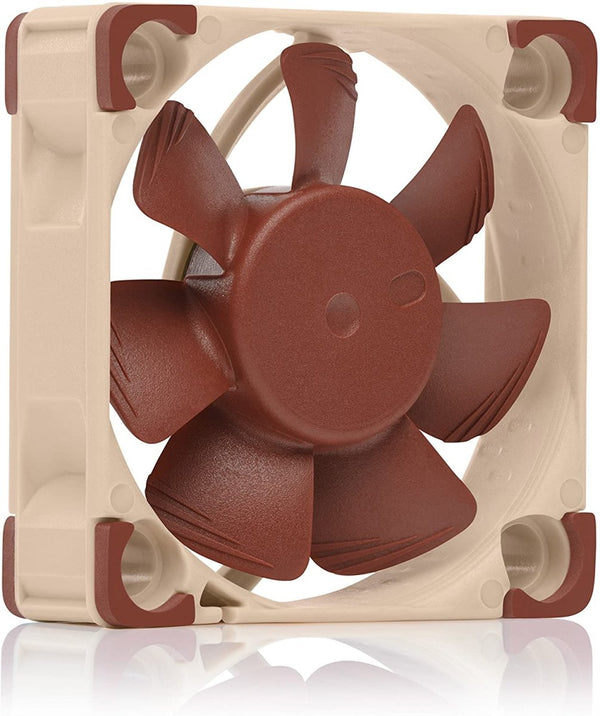

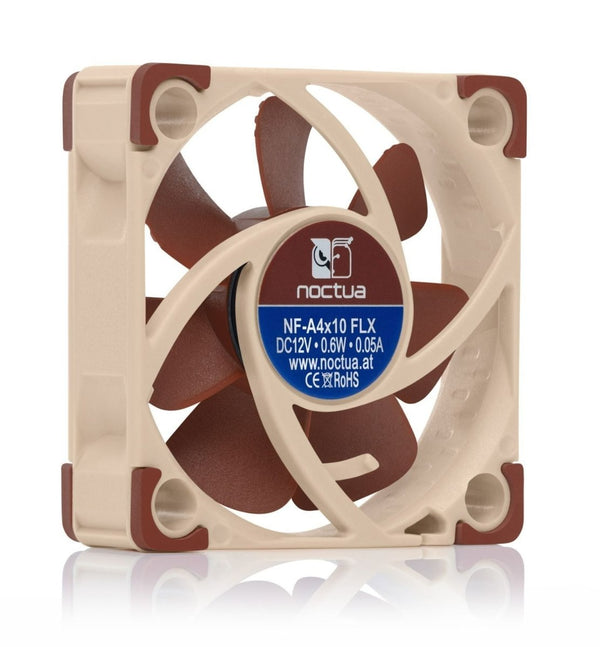

Noctua silent fan: the NF-A4x10 FLX is a 40x10mm 12V 3-pin replacement that drops into the original GameCube fan slot, much quieter than the original.
Internal HDMI (KNJN Pluto 2 ii): pre-programmed with GCVideo 3.1 firmware, USB-C powered. True digital output for both DOL-001 and DOL-101 (DOL-101 needs the Helder quick-solder flex). The most technical GameCube mod, advanced soldering experience required.
Controllers + sticks: Retro Fighters BattlerGC Pro wireless (Bluetooth + 2.4GHz), Z-Sticks concave thumbstick grips, ZedLabz metal aluminum thumbsticks for stock controllers.

Eon GCHD MK-II vs KNJN Pluto 2 ii vs Retro-Bit Prism, which HDMI?

Mod	Install	Output	Best for
Eon GCHD MK-II	Plug-and-play, no soldering. DOL-001 digital AV port only	480p HDMI	Fast HDMI on a DOL-001 with no console opening
KNJN Pluto 2 ii (internal)	Internal install, soldering. DOL-001 direct, DOL-101 needs flex	True digital, GCVideo 3.1 firmware, USB-C	Modders chasing the cleanest digital output
Retro-Bit Prism	External, plug-and-play, firmware updatable, ships with remote	HDMI with firmware menu	Owners wanting a feature-rich external option

Worldwide delivery with tracking on every order. Message support if you need help choosing between Picoboot install variants or HDMI options.

Related collections

Nintendo Wii Parts. The GameCube successor, plays GameCube discs natively on early models
Nintendo 64 Parts
Hall Effect analog sticks

Nintendo GameCube. FAQs

Will the Eon GCHD MK-II work on a DOL-101?

No. The Eon GCHD MK-II uses the GameCube's digital AV port. Nintendo removed the digital port on DOL-101 revisions (later production), so the GCHD MK-II only works on DOL-001 boards. If you have a DOL-101, the internal KNJN Pluto 2 ii HDMI mod (with the Helder Game Tech DOL-101 flex) is the working route.

How does Picoboot work?

Picoboot replaces the GameCube's IPL boot ROM with a Raspberry Pi Pico flashed with the Picoboot firmware. The Pico boots straight into Swiss (an open-source GameCube loader) which loads games from an SD card via an SD2SP2 adapter, instead of from disc. Benefits: faster loads, no laser wear, no broken-disc hassle. Install requires soldering the Helder quick-solder flex cable to the GameCube motherboard, an evening's project for someone comfortable with an iron.

Why install a Noctua fan in a GameCube?

The original GameCube fan gets noticeably louder with age. The Noctua NF-A4x10 FLX 12V is a high-quality 40x10mm 3-pin replacement that fits the GameCube fan slot directly and runs much quieter. Install: open the GameCube, swap the fan, close back up. No soldering.

Does the Robot Retro USB-C PSU need extra power adapters?

The Robot Retro USB-C PSU board replaces the internal GameCube power module and accepts USB-C input. You'll want a USB-C power supply that meets the GameCube's power draw, the product page lists the recommended wattage. After install you can power the GameCube from any compatible USB-C charger.

What tools do I need for GameCube mods?

A GameCube security bit (4.5mm), Phillips PH00 (internal screws), plastic pry tool. For Picoboot and Pluto 2 internal HDMI install, add a temperature-controlled iron (the Miniware TS101 is a popular starting point), solder and quality flux. See our modding tools and soldering supplies.
