Restore your Atari Jaguar with this comprehensive surface-mount electrolytic capacitor replacement set.
Ideal for repairing or maintaining ageing consoles, this kit contains the replacement capacitors required for compatible Atari Jaguar console revisions.
Features:
- Comprehensive capacitor replacement set
- Compatible with Atari Jaguar consoles
- Includes replacement capacitors for the main console PCB
- Suitable for preventative maintenance or repair
- Ideal for restoring ageing consoles
- Requires desoldering and soldering skills for installation
Description:This capacitor replacement kit is designed for servicing compatible Atari Jaguar consoles. Over time, original capacitors can deteriorate through age and use, making replacement a common maintenance task during console restoration or repair.

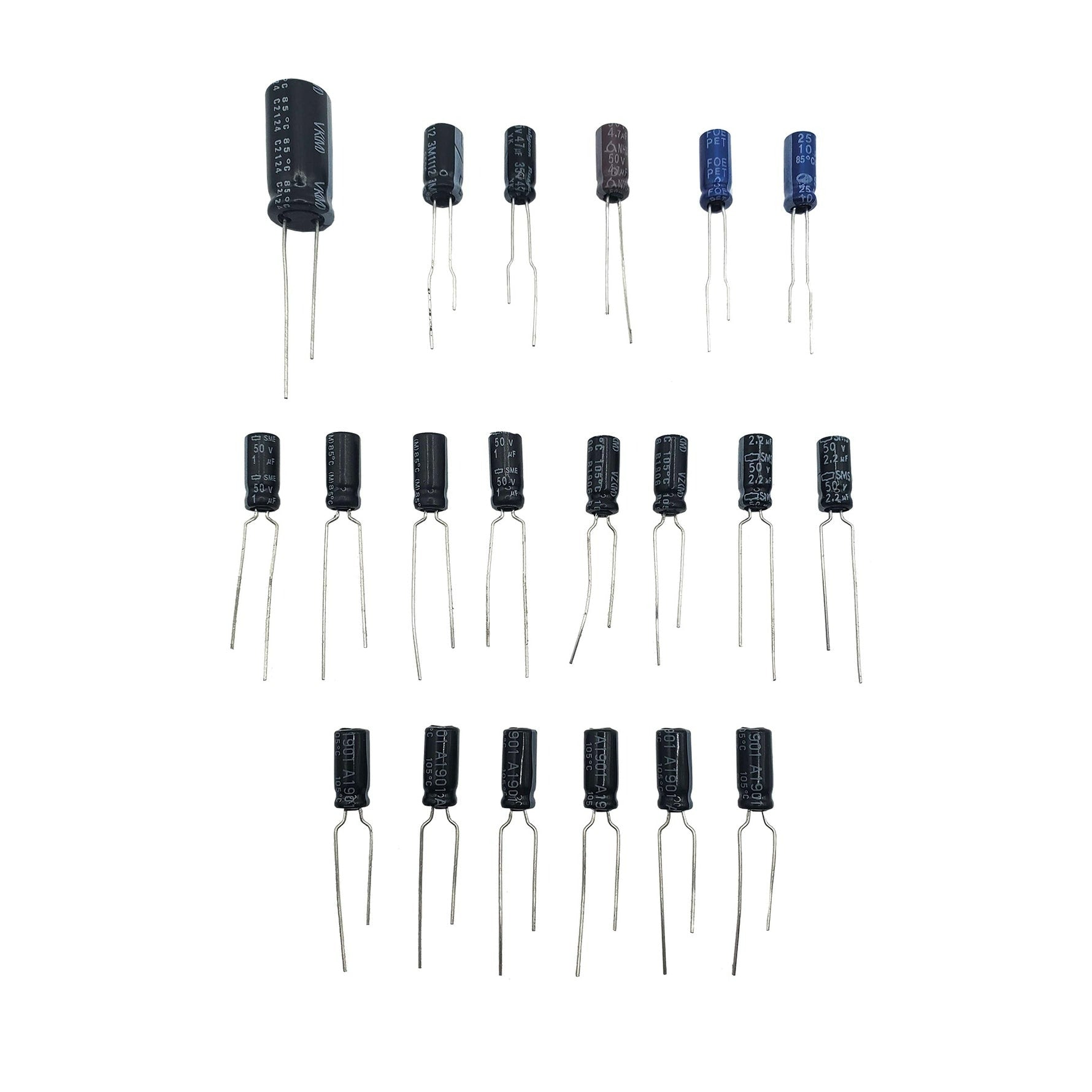

The kit includes replacement though hole capacitors covering the main capacitor locations used on compatible Atari Jaguar console revisions, and is assembled using major brand capacitors selected for their quality and reliability.
Installation requires the console to be disassembled, followed by the removal of the original capacitors and soldering of the replacements. Experience with both desoldering and soldering electronic components is recommended before attempting installation. Always observe capacitor polarity and component orientation during fitting.
Capacitor List:C7 100uF 16V
C8 100uF 16V
C10 10uF 16V
C11 10uF 25V
C14 1uF 50V
C17 1uF 50V
C18 1uF 50V
C21 1uF 50V
C22 10uF 25V
C24 2.2uF 50V
C34 10uF 16V
C39 22uF 16V
C42 10uF 25V
C43 10uF 25V
C45 47uF 16V
C93 10uF 25V (Rev J / K only)
C134 330uF 16V
C142 10uF 25V
C150 2200uF 10V
C174 4.7uF 50V
Further Information:Installation requires the console to be opened. Opening tools, soldering equipment and consumables are not included.
Suitable tools typically include screwdrivers, a soldering iron, solder, flux and desoldering equipment such as a desoldering pump
Installation requires experience with desoldering and soldering electronic components. If you are unfamiliar with these techniques, we recommend consulting a professional or referring to reputable repair guides before attempting installation.
Please note: This is an unofficial third-party repair kit and is not manufactured by, licensed by, authorised by or endorsed by Atari.
Product Safety:Contains small parts, choking hazard.
Not a toy -
Keep out of reach of children.Installation requires technical skill and experience with desoldering and soldering.
Observe capacitor polarity during installation. Incorrect fitting may damage the console.
Use appropriate eye protection and work in a well-ventilated area when soldering.
Allow soldering equipment and components to cool before handling.
