Name: IPS LCD screen upgrade kit for Atari Lynx model 2 handheld console drop in solderless mod | BennVenn
Brand: BennVenn
SKU: 100389
Price: 925.00 NOK
Availability: InStock

IPS LCD screen upgrade kit for Atari Lynx model 2 handheld console drop in solderless mod | BennVenn

Roll over image to zoom in Click on image to zoom

Features:

- High brightness backlit IPS LCD Compatible with Lynx model 2
- Solderless installation by utilising the included custom ribbon cable.
- Lower power usage - extended batter life compared to the old tube lit screen.
- Includes 3D Printed bracket for easy alignment of the LCD panel.
- Built in protection prevents damage to the kit if your system voltage is running outside of the norm.
- Brightness control via original brightness wheel.
- C104129-001 motherboard version requires modification.

Description:

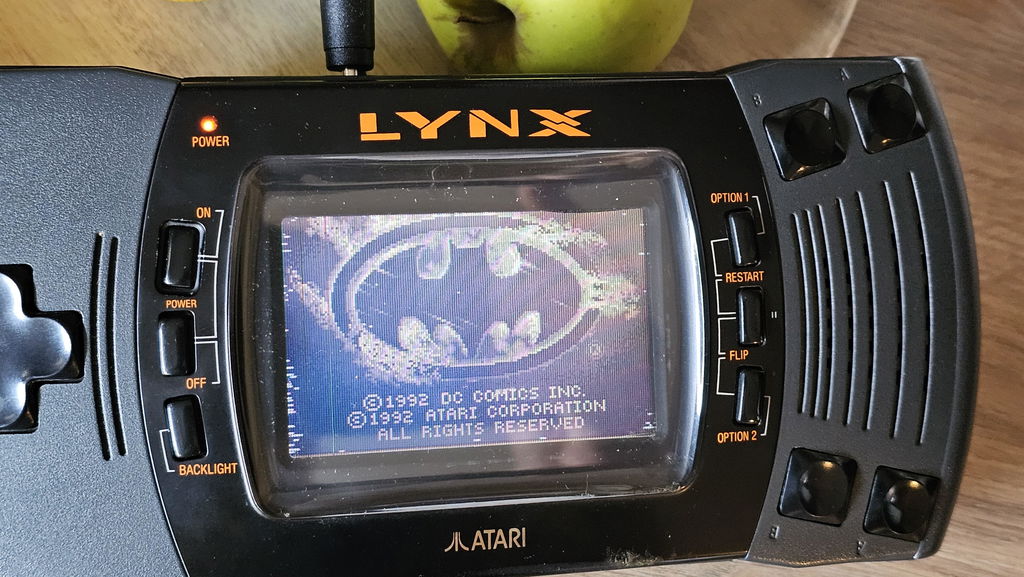

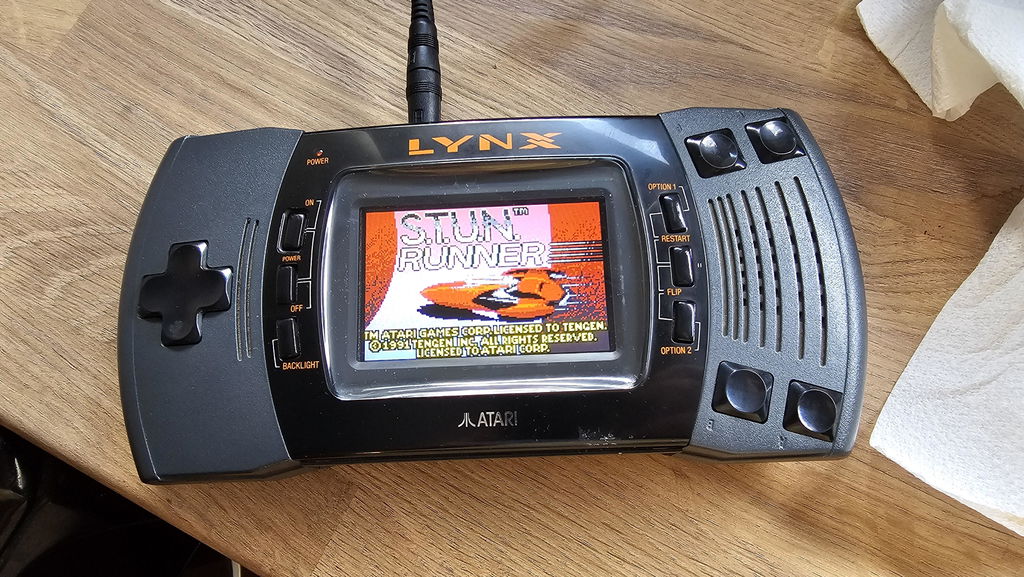

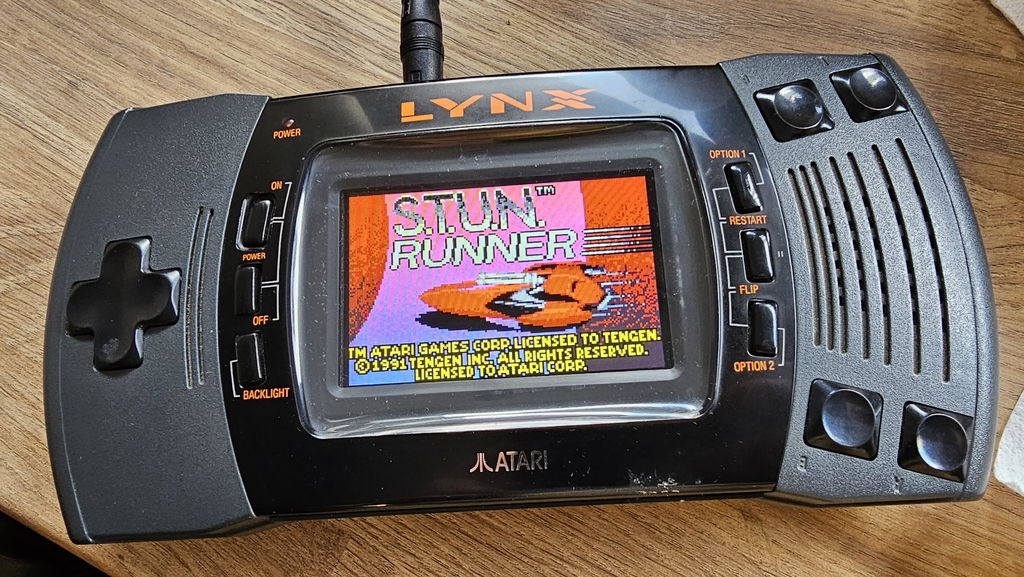

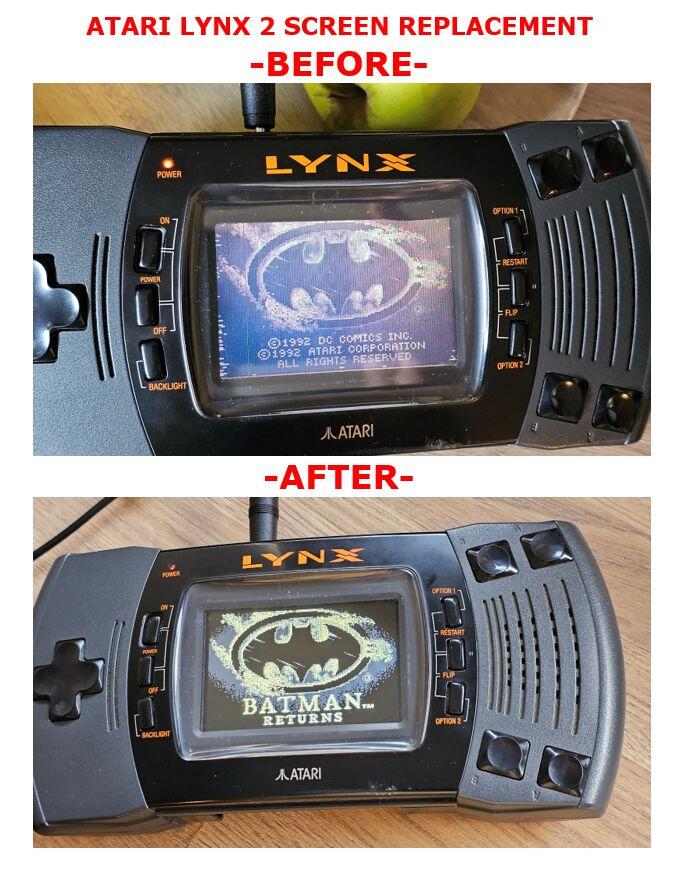

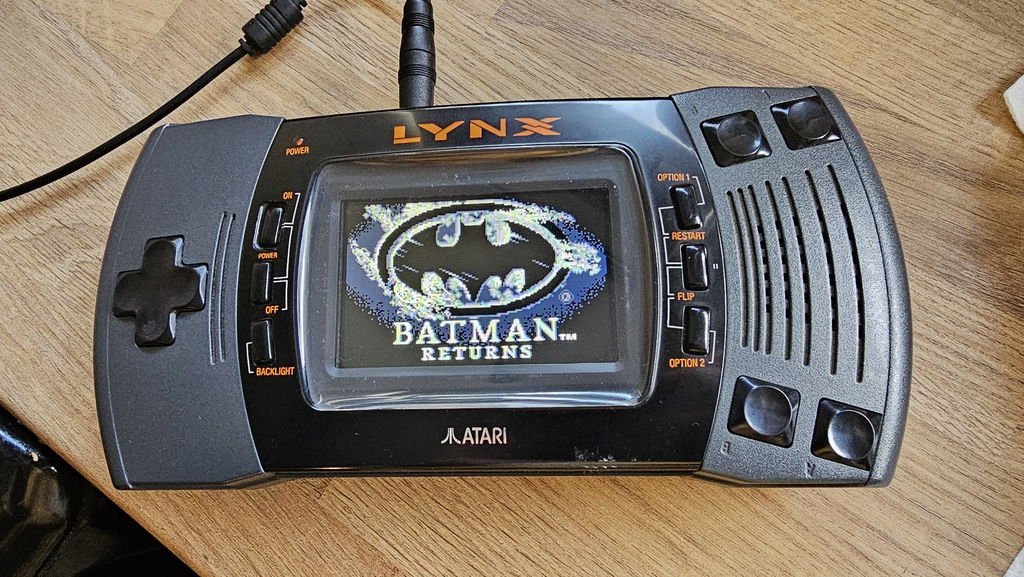

The IPS LCD mod for Atari Lynx replaces the original tube lit screen to provide a sharper and brighter image on your old handheld, plus improved viewing angles.

Battery life is also increased thanks to the low power consumption of then LCD panel and driver board.

A 3D Printed bracket is included in the kit for easy alignment of the new screen.

It is generally recommended that you re-cap your Lynx and confirm it is functioning correctly before installing the LCD Kit.

Compatible with all Atari Lynx 2 consoles except on variant with motherboard motherboard model number C104129-001. If you have this specific model you can use the Atari Lynx model 1 LCD and driver board with a Lynx 2 printed bracket, contact us if you require this version.

Installation guide can be found here: https://k-retro.com/index.php?controller=attachment&id_attachment=30

This kit can be installed with no soldering, however, if If your Lynx has a C104129-001 motherboard version, you will need to solder an extra wire and cut a trace on the ribbon cable. Please contact us for details.

DIY part. This is a DIY part for you to fit yourself. Fitting needs care and, where stated, soldering or other technical skills – see our fitting guides. We're not responsible for damage caused by incorrect fitting, or for an existing fault in your console. Replacing a part may not fix your fault, as faults can have more than one cause. This doesn't affect your statutory rights.

Safety information:

- Not a toy.
- Glass – sharp if broken; handle with care.
- Switch off, unplug and remove any batteries before fitting.
- Fits listed models only – do not force.
- Fitting guides: zedlabz.com/blogs/guides
- Follow the manufacturer's instructions.

Brand / manufacturer: BennVenn · Importer / seller: Assecure Ltd (ZedLabz), The Outbuildings, Grove Farm Road, Maldon, Essex, CM9 8LR, UK · support@zedlabz.com

EU responsible person (for authorities only): FFB Estonia OÜ · Päevalille tn 6-15, Haabersti linnaosa, 13517 Tallinn, Harju maakond, Estonia · finance_estonia@fulfillment-box.com

Platform: Atari Lynx II

Brand: BennVenn

Ean:

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

5 stars: 5 (100%)
4 stars: 0 (0%)
3 stars: 0 (0%)
2 stars: 0 (0%)
1 star: 0 (0%)

Amazing Screen for Atari Lynx II

This is a must have screen if You're using or wanting to upgrade the Atari Lynx II. The Picture Quality is beyond the expectations. Although it says that's solderless You can solder some extra wires if You want Scan lines for example, one wire will make the backlight button to have this extra feature. I compared my other Atari Lynx II with this one that got screen upgraded and the difference is Huge. Picture quality is nice, sharp, bright and eye catchy. Highly Recommended BennVenn Screen due to it's Great Quality and a Big Thanks to the Zedlabz Support Team for a bit of advice with the installation.

This was exactly what I hoped for! Perfect!

This was exactly what I hoped for. Easy installation, everything i needed in one package and a screen that looked even better than I imagined! I love the Lynx hend held but anyone that played on one knows the old lamp light back lit screen is hard to play on. This new screen makes this thing enjoyable again! 6 stars if I could give an extra!!

PERFECT

First order but certainly not the last! It was perfect and fast. Thank you :-)

Great product with a slight glitch

Great product which arrived quickly. What a night and day difference between original screen and this one. Given my Atari Lynx 2 a new lease of life.
One question though, the screen motherboard has come unstuck from the lcd screen.
Can one use double-sided sellotape to stick it back?

Worked perfectly and gave new life to my old Atari Lynx!!!
