Features:
- Capacitor set for Nintendo Game Boy Pocket.

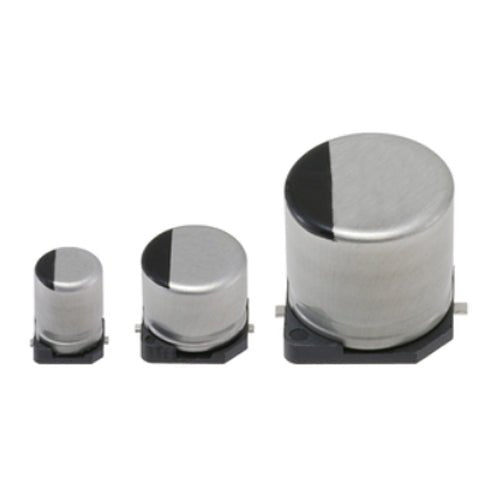

- Includes 4 SMD capacitors - Panasonic & Nichicon 105
°c 2000h capacitors.
- Compatible with the Game Boy Pocket mainboard.
- Can fix low volume output, dim LCD screen issues or no power.
- Requires internal soldering.
Description:
This repair kit includes 4 capacitors needed to resolve problems such as the Game Boy Pocket not powering on, experiencing volume issues or a dim LCD screen.
The 4 capacitor kit is compatible with Nintendo Game Boy Pocket console.
These are Panasonic & Nichicon capacitors in the following values:
1 x 33uf 25V (Motherboard location C29)
1 x 330uf 6V (Motherboard location C30)
1 x 100uf 6V (Motherboard location C31)
1 x 100uf 6V (Motherboard location C32)
A reasonable level of soldering ability are required to install the replacement capacitors. The console must be opened to install.
A Philips #00 and Tri-wing security screwdriver are required to open the console (Not included).
Soldering iron, solder & desoldering braid required to fit capacitors, (not included).
