Features:- 40 way single row male pin header strip.
- Standard 2.54mm (0.1 inch) pitch.
- Gold plated brass pins in a black PA6T UL94V-0 housing.
- Snaps apart easily to the number of pins you need.
- Through hole – requires soldering.
Description:A handy single row male pin header strip for console mods, flash cart and programmer builds, and general PCB projects.
The strip has 40 pins at the standard 2.54mm (0.1 inch) pitch and can be snapped down to any length, making it ideal for adding programming, debug or test connections to a board, or fitting mod PCBs that use pin headers.
Specification:
Pins: 40 (1 x 40)
Pitch: 2.54mm
Pin diameter: 0.64mm
Mating pin height: 6mm
Contact: gold plated brass
Housing: PA6T, UL94V-0
Rated current: 1A per pin
Operating temperature: -40°C to +105°C

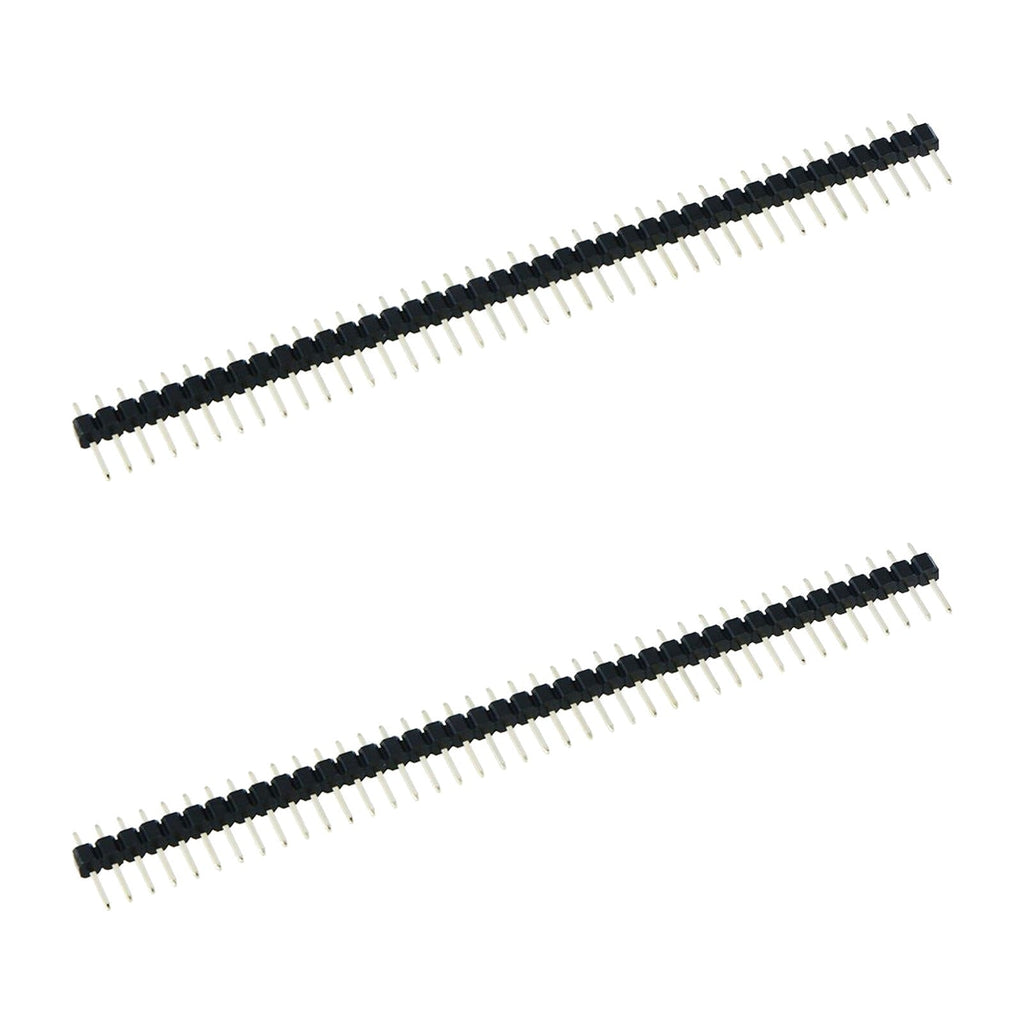

Supplied as a 2 pack of 40 pin strips. Requires soldering to install.
DIY part. This is a DIY part for you to fit yourself. Fitting needs care and, where stated, soldering or other technical skills – see our
fitting guides. We're not responsible for damage caused by incorrect fitting, or for an existing fault in your console. Replacing a part may not fix your fault, as faults can have more than one cause. This doesn't affect your statutory rights.
Safety information:
- Not a toy. Keep out of reach of children.
- Small parts – choking hazard.
- Soldering required – ventilate, beware hot iron.
- Switch off, unplug and remove any batteries before fitting.
- Fits listed models only – do not force.
- Fitting guides: zedlabz.com/blogs/guides
