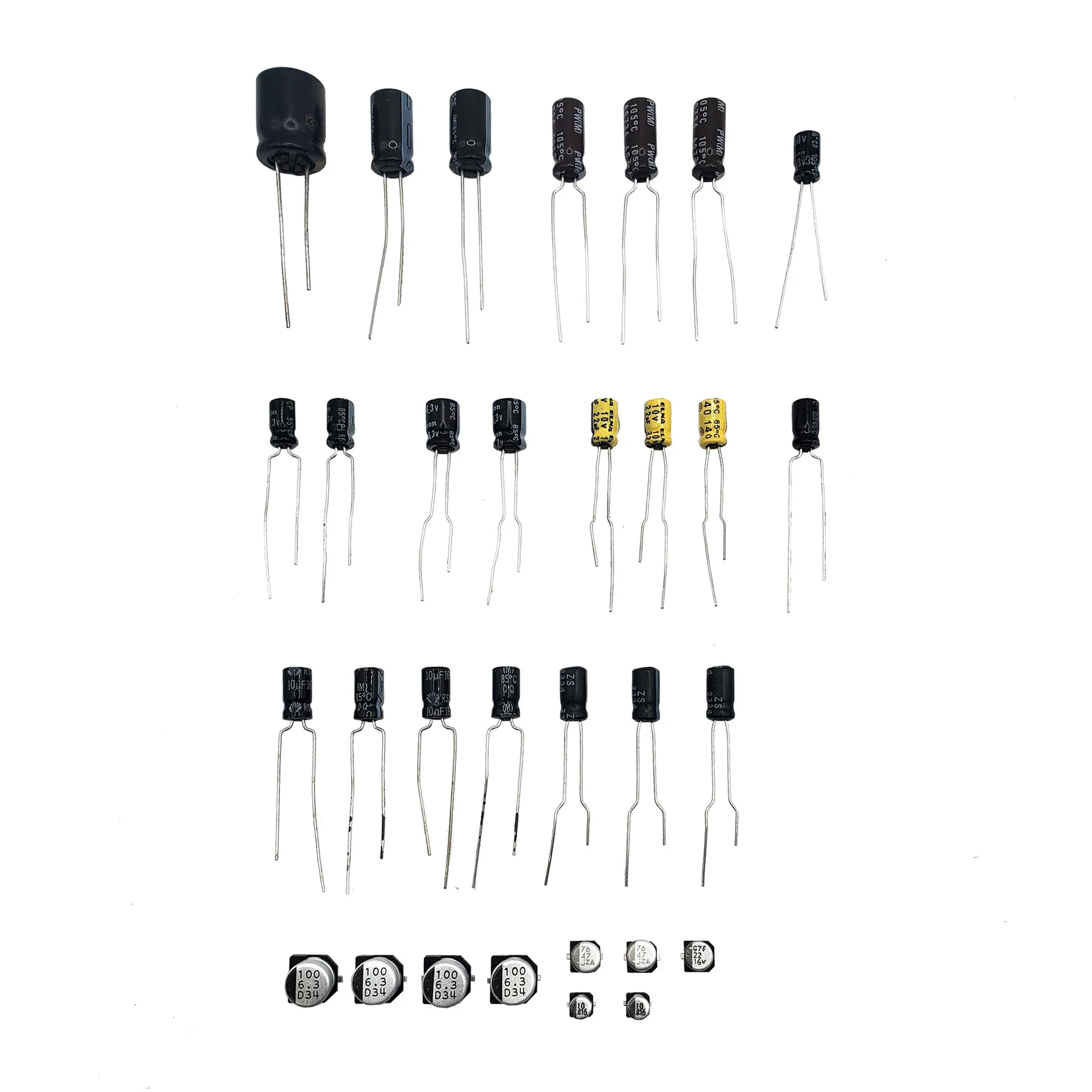

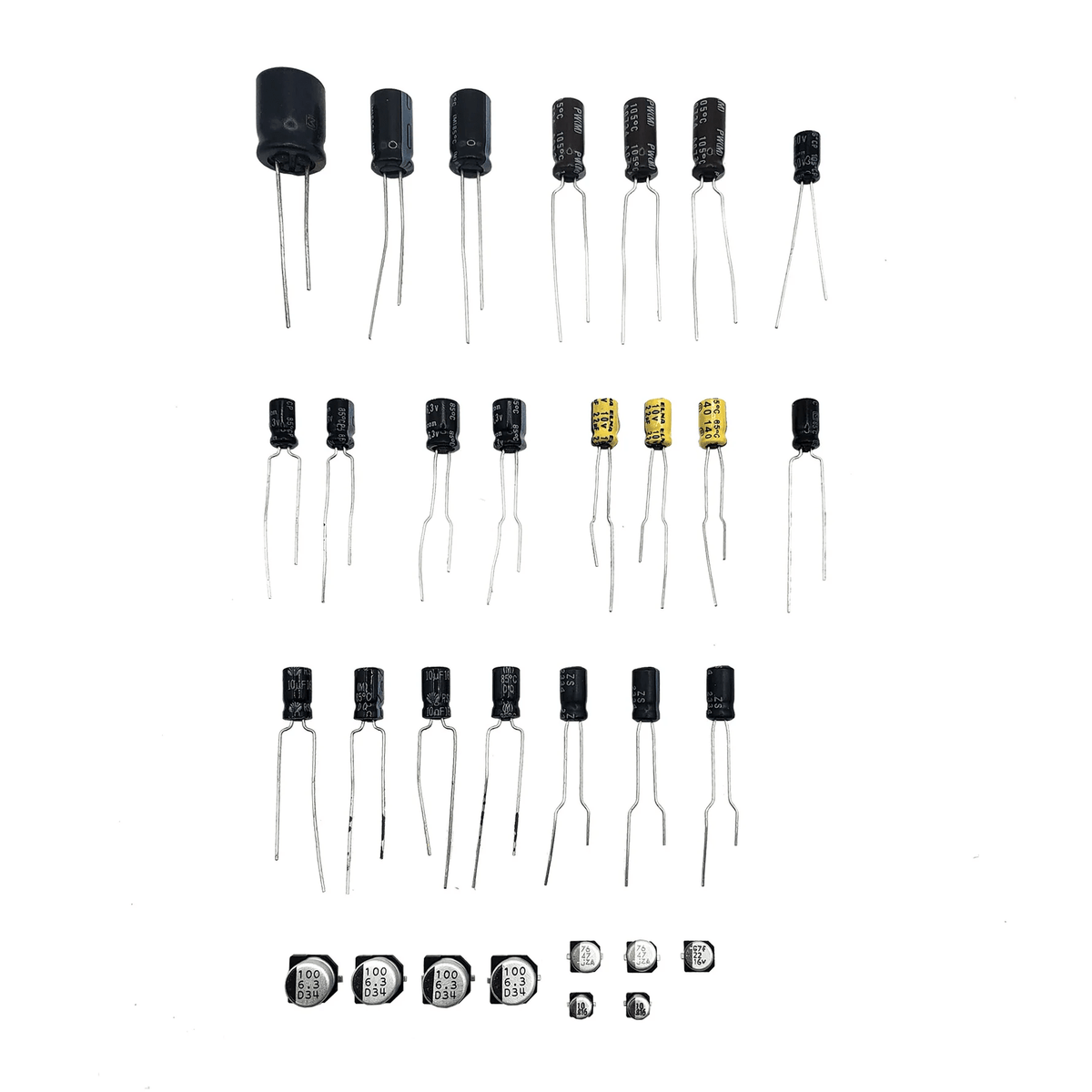

Complete replacement capacitor set for VA4 Sega Game Gear consoles, covering compatible main, power and sound boards for repair and preventative recapping.
Features:
- Complete capacitor replacement set for Sega Game Gear VA4 consoles
- Compatible with VA4 main board revisions 837-9537 and 837-9537-01
- Includes replacement capacitors for the main, power and sound boards
- Made up of quality capacitors from major component brands
- Suitable for replacing ageing, leaking or failed original capacitors
- Can be used when repairing common age-related power, sound, display and stability issues
- Requires console disassembly and soldering
- Includes capacitors for multiple compatible VA4 board revisions; only the components applicable to your particular boards should be fitted
Description:
Replace ageing or failed capacitors in a VA4 Sega Game Gear with this comprehensive replacement capacitor set.
Original Game Gear electrolytic capacitors are now several decades old and can deteriorate or leak over time. Failed capacitors can contribute to a range of problems including poor or missing sound, power issues, display problems and unstable operation.
This set provides replacement capacitors for compatible VA4 main, power and sound boards, including both 837-9537 and 837-9537-01 main board revisions.
As capacitor requirements differ between VA4 board revisions, not every capacitor supplied will necessarily be required for every console. Identify the boards fitted to your Game Gear and install only the capacitors applicable to those board revisions.
The kit is made up of quality capacitors sourced from major component brands. Exact brands may vary between production batches depending on component availability.
Installation requires the Game Gear to be opened and the original capacitors desoldered before the replacements are fitted. A good level of soldering and electronics repair experience is recommended.
Compatibility:
VA4 Main Boards:
837-9537 / 837-9537-01
VA4 Power Board:
837-9538
Compatible Sound Board:
837-9539
Boards covered: Main / Power / Sound
Installation: Internal fitting required
Soldering required: Yes
VA4 Main Board 837-9537 Capacitors:
- C1 – 33µF 6.3V
- C31 – 10µF 6.3V
- C33 – 10µF 6.3V
- C36 – 22µF 6.3V
- C37 – 10µF 16V
- C38 – 22µF 35V
- C39 – 10µF 50V
- C40 – 47µF 6.3V
- C41 – 47µF 6.3V
- C42 – 10µF 50V
- C43 – 1µF 50V
- C44 – 22µF 6.3V
- C46 – 22µF 50V
- C47 – 10µF 50V
- C55 – 100µF 6.3V
VA4 Main Board 837-9537-01 Capacitors:
- C1 – 33µF 6.3V
- C31 – 100µF 6.3V
- C33 – 22µF 6.3V
- C36 – 22µF 6.3V
- C37 – 10µF 16V
- C38 – 22µF 35V
- C39 – 10µF 50V
- C40 – 47µF 6.3V
- C41 – 47µF 6.3V
- C42 – 10µF 50V
- C43 – 1µF 50V
- C44 – 22µF 6.3V
- C46 – 22µF 50V
- C47 – 10µF 50V
- C55 – 100µF 6.3V
- C75 – 100µF 6.3V
VA4 Power Board Capacitors:
- C5 – 22µF 35V
- C9 – 10µF 16V
- C11 – 100µF 25V
- C13 – 820µF 6.3V
Sound Board Capacitors:
- C1 – 100µF 6.3V
- C2 – 100µF 6.3V
- C3 – 100µF 6.3V
- C5 – 47µF 4V
- C7 – 47µF 4V
Further Information:
Please confirm the board revisions fitted to your Game Gear before ordering and installation. Board revision numbers are marked internally and require the console to be opened for identification.
Not every capacitor supplied in the set will necessarily be required for every compatible VA4 Game Gear revision.
This is a third-party repair component set and is not manufactured, sponsored or endorsed by Sega.
Disclaimer:
The exact capacitor brands, appearance and voltage ratings supplied may vary between batches due to component availability. Capacitors will be sourced from major component brands and selected as compatible replacements for the intended application.
Capacitance (µF) values will match the required specification. Voltage ratings will be the same as or higher than the original component where appropriate; a higher voltage rating is suitable for this application and does not alter the required capacitance value.
Product images are representative and the brand, colour, size or appearance of individual capacitors supplied may differ.
Product Safety:
- Keep the product and all packaging materials away from young children.
- Contains small parts which may present a choking hazard.
- Switch off the console and remove all batteries and external power sources before disassembly or installation.
- Electrolytic capacitors are polarised and must be installed in the correct orientation.
- Incorrect component placement, polarity or soldering may damage the replacement components or console.
- Soldering irons and heated solder can cause serious burns. Use appropriate protective equipment and work in a suitable, well-ventilated area.
- Installation should only be carried out by a competent person with suitable soldering and electronics repair experience.
