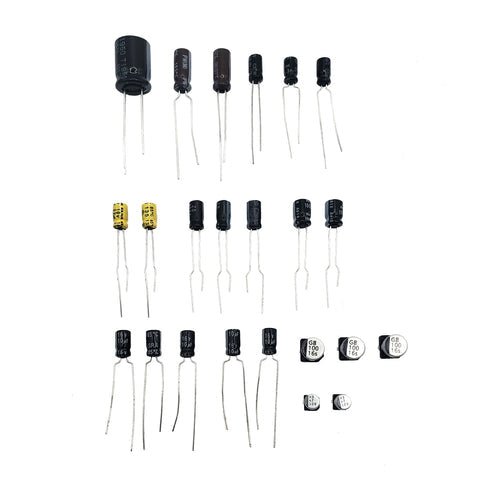

Complete replacement capacitor set for VA5 and Majesco Sega Game Gear consoles, covering compatible main, power and sound boards for repair and preventative recapping.
Features:
- Complete capacitor replacement set for Sega Game Gear VA5 and Majesco consoles
- Compatible with VA5 main board 837-10766 and Majesco PCB revision 1.71-7923A
- Includes replacement capacitors for the main, power and sound boards
- Made up of quality capacitors from major component brands
- Suitable for replacing ageing, leaking or failed original capacitors
- Can be used when repairing common age-related power, sound, display and stability issues
- Requires console disassembly and soldering
- Includes alternative capacitor values where required to support compatible board variations
Description:
Replace ageing or failed capacitors in a VA5 or Majesco Sega Game Gear with this comprehensive replacement capacitor set.
Original Game Gear electrolytic capacitors are now several decades old and can deteriorate or leak over time. Failed capacitors can contribute to a range of problems including poor or missing sound, power issues, display problems and unstable operation.
This set provides replacement capacitors for compatible main, power and sound boards and supports Sega VA5 main board 837-10766 and Majesco PCB revision 1.71-7923A.
Component values can differ between VA5 and Majesco board variations. The set includes alternative values where required, so not every capacitor supplied will necessarily be fitted to every console. Check the components originally fitted to your board and install the appropriate replacements.
The kit is made up of quality capacitors sourced from major component brands. Exact brands may vary between production batches depending on component availability.
Installation requires the Game Gear to be opened and the original capacitors desoldered before the replacements are fitted. A good level of soldering and electronics repair experience is recommended.
Compatibility:
VA5 Main Board:
837-10766
Majesco Main Board:
PCB REV 1.71-7923A
Compatible Power Board:
837-10767
Compatible Sound Board:
837-10768
Boards covered: Main / Power / Sound
Installation: Internal fitting required
Soldering required: Yes
VA5 / Majesco Main Board Capacitors:
- C1 – 33µF 6V
- C31 – 10µF 6V
- C33 – 10µF 6V
- C35 – 10µF 6V
- C36 – 22µF 6V
- C37 – 10µF 6V
- C39 – 10µF 50V
- C40 – 47µF 6V
- C41 – 100µF 6.3V or 22µF 6.3V – check the value fitted to your original board before replacement
- C42 – 10µF 50V
- C43 – 1µF 50V
- C44 – Empty or 47k (473) resistor on applicable VA5 boards – do not fit a capacitor
- C47 – 10µF 50V
- C55 – 100µF 6V
- C71 – 10µF 6V
- C72 – Empty – do not fit a capacitor
Important: C41 may use either a 100µF or 22µF capacitor depending on the VA5 or Majesco board fitted to the console. Both values are included where applicable; check the value of the original C41 capacitor and fit the corresponding replacement.
Power Board Capacitors:
- C5 – 22µF 35V
- C11 – 100µF 25V
- C13 – 820µF 6.3V
Sound Board Capacitors:
- C1 – 100µF 6.3V
- C2 – 100µF 6.3V
- C3 – 100µF 6.3V
- C5 – 47µF 4V
- C7 – 47µF 4V
Further Information:
Please confirm the board revisions fitted to your Game Gear before ordering and installation. Board revision numbers are marked internally and require the console to be opened for identification.
Not every capacitor supplied in the set will necessarily be required for every compatible VA5 or Majesco Game Gear. Component values and populated positions can differ between board variations, so the markings and components fitted to the original board should be checked before replacement.
This is a third-party repair component set and is not manufactured, sponsored or endorsed by Sega or Majesco.
Disclaimer:
The exact capacitor brands, appearance and voltage ratings supplied may vary between batches due to component availability. Capacitors will be sourced from major component brands and selected as compatible replacements for the intended application.
Capacitance (µF) values will match the required specification. Voltage ratings will be the same as or higher than the original component where appropriate; a higher voltage rating is suitable for this application and does not alter the required capacitance value.
Product images are representative and the brand, colour, size or appearance of individual capacitors supplied may differ.
Product Safety:
- Keep the product and all packaging materials away from young children.
- Contains small parts which may present a choking hazard.
- Switch off the console and remove all batteries and external power sources before disassembly or installation.
- Electrolytic capacitors are polarised and must be installed in the correct orientation.
- Incorrect component placement, polarity or soldering may damage the replacement components or console.
- Soldering irons and heated solder can cause serious burns. Use appropriate protective equipment and work in a suitable, well-ventilated area.
- Installation should only be carried out by a competent person with suitable soldering and electronics repair experience.
