Pulled
Features: - LCD screen Interface board for DS original (not DS Lite)
- Connects the upper screen to the console motherboard.
- Also connects the speakers
- Compatible with the original DS NTR-001
- Soldering required to connect wifi antenna wires.

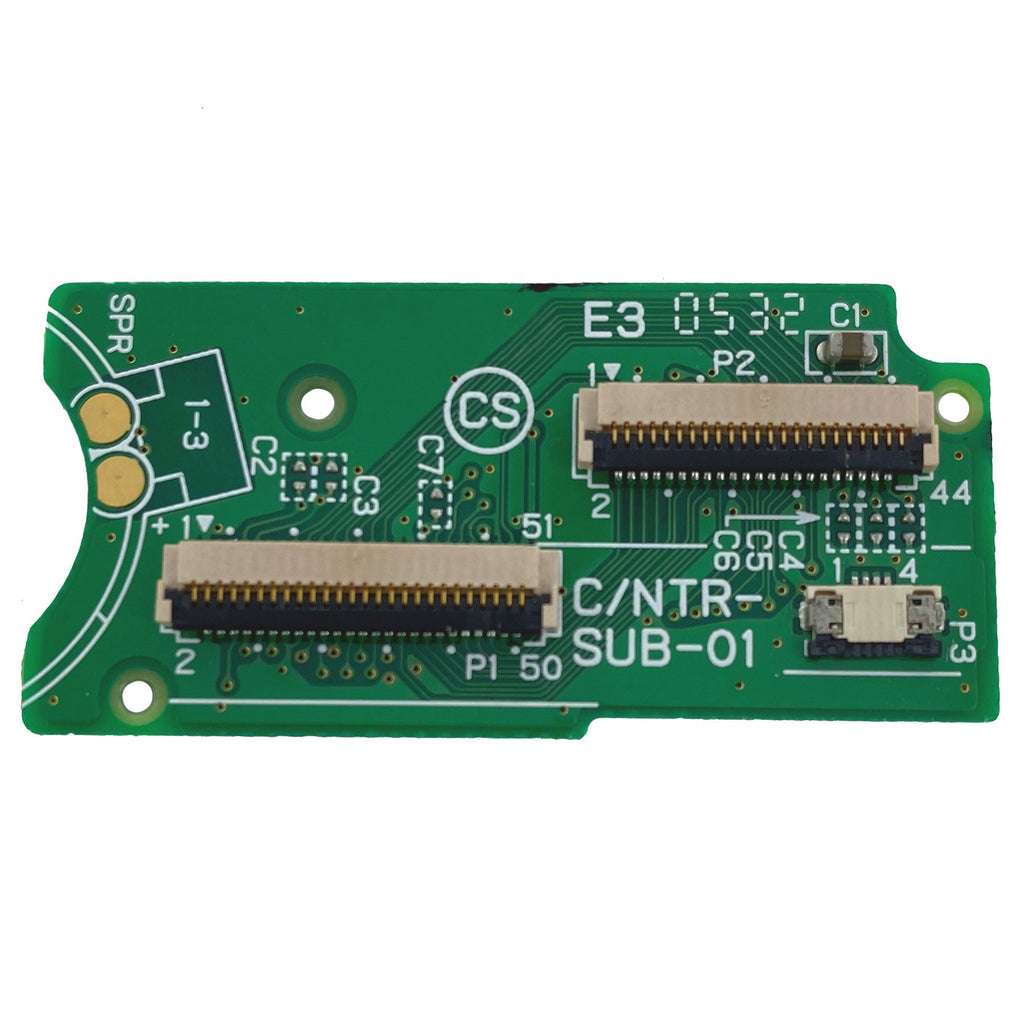

Description: The LCD interface board connects the top screen to the consoles mainboard, it also connects the speakers
The board has three connectors, one for the screen, one for the screen backlight, and one for the interface cable which goes back to the motherboard.
Two solder points on the rear of the board are used to connect the speaker on the opposite side of the screen.
Compatible with Original DS consoles only, not compatible with DS Lite or other models.
DIY part. This is a DIY part for you to fit yourself. Fitting needs care and, where stated, soldering or other technical skills – see our fitting guides. We're not responsible for damage caused by incorrect fitting, or for an existing fault in your console. Replacing a part may not fix your fault, as faults can have more than one cause. This doesn't affect your statutory rights.
Safety information:
- Not a toy. Keep out of reach of children.
- Small parts – choking hazard.
- Soldering required – ventilate, beware hot iron.
- Switch off, unplug and remove any batteries before fitting.
- Fits listed models only – do not force.
