Restore your Nintendo Entertainment System Top Loader with this capacitor replacement kit for the NESN-CPU-01 mainboard.
Ideal for repairing or maintaining ageing consoles, this kit contains the replacement capacitors required for the NES Top Loader motherboard.
Features:
- Capacitor replacement set for Nintendo Entertainment System Top Loader (NESN-CPU-01)
- Compatible with Nintendo NES Top Loader consoles
- Includes replacement capacitors for the mainboard
- Assembled using major brand capacitors selected for their quality and reliability
- Suitable for preventative maintenance or repair
- Requires desoldering and soldering skills for installation
Description:This capacitor replacement kit is designed for servicing the Nintendo Entertainment System Top Loader (NESN-CPU-01) mainboard. Over time, original capacitors can deteriorate through age and use, making replacement a common maintenance task during console restoration or repair.
The kit includes replacement capacitors for the NES Top Loader motherboard and is assembled using major brand capacitors selected for their quality and reliability.
Installation requires the console to be disassembled before the original capacitors are removed and the replacements soldered into place.
Experience with desoldering and soldering electronic components is recommended before attempting installation. Always observe capacitor polarity and component orientation during fitting.

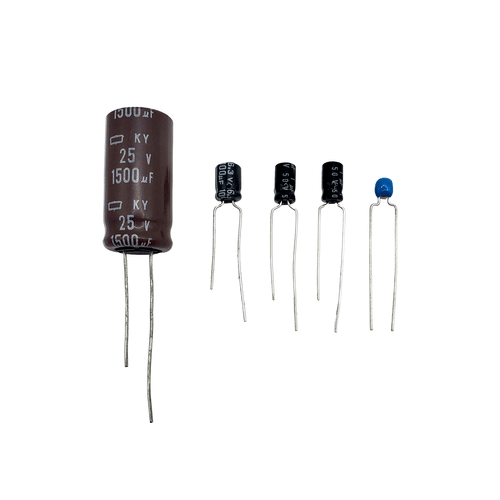

Capacitor List:C1 100uF 6.3V
C3 1uF 50V
C11 0.47uF 50V
C13 1500uF 25V
C14 1uF 50V
Further Information:Installation requires the console to be opened. Opening tools, soldering equipment and consumables are not included.
Suitable tools typically include screwdrivers, a soldering iron, solder, flux and desoldering equipment such as a desoldering pump or desoldering braid.
Installation requires experience with desoldering and soldering electronic components. If you are unfamiliar with these techniques, we recommend consulting a professional or referring to reputable repair guides before attempting installation.
Please note: This is an unofficial third-party repair kit and is not manufactured by, licensed by, authorised by or endorsed by Nintendo.
Product Safety:Contains small parts, choking hazard.
Not a toy - Keep out of reach of children.
Installation requires technical skill and experience with desoldering and soldering.
Observe capacitor polarity during installation. Incorrect fitting may damage the console.
Use appropriate eye protection and work in a well-ventilated area when soldering.
Allow soldering equipment and components to cool before handling.
