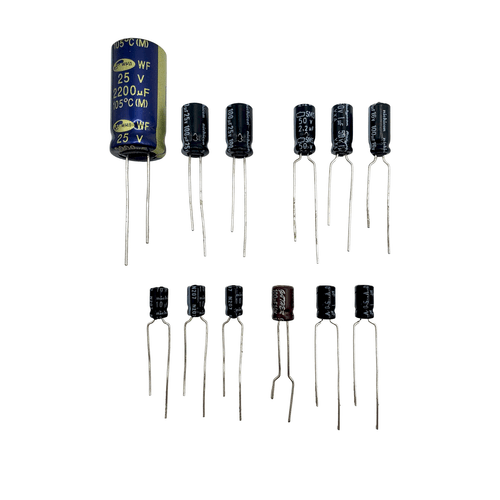

Restore your Nintendo Entertainment System with this comprehensive capacitor replacement kit for the Front Loader NES (NES-001).
Designed for console repair and preventative maintenance, the kit contains the replacement capacitors required for the main logic board together with a range of compatible power and RF modulator board revisions.
Features:
- Comprehensive capacitor replacement set for Nintendo Entertainment System Front Loader (NES-001)
- Includes capacitors for the main logic board and compatible power / RF modulator boards
- Assembled using major brand capacitors selected for their quality and reliability
- Suitable for console restoration, repair and preventative maintenance
- Covers multiple power board revisions
- Requires desoldering and soldering skills for installation
Description:This capacitor replacement kit is designed for servicing Nintendo Entertainment System Front Loader (NES-001) consoles. As consoles age, the original capacitors can deteriorate, making replacement a common maintenance task when restoring or repairing your console.
The kit includes replacement capacitors for the main NES logic board together with a selection of capacitors suitable for the most common Alps and Mitsumi power and RF modulator board revisions. It is assembled using major brand capacitors selected for their quality and reliability.
Installation requires the console to be disassembled before the original capacitors are removed and the replacements soldered into place. Experience with desoldering and soldering electronic components is recommended before attempting installation. Always observe capacitor polarity and component orientation during fitting.
Capacitor List:Main NES Logic Board
C1 100uF 6.3V
C9 2.2uF 50V
C23 1uF 50V
Alps Modules with BA20 (or similar) Diode Bridge
Alps - Green PCB with Floating Capacitor
C19 1uF 50V
C30 2200uF 25V
C33 1uF 50V
C34 100uF 6.3V
Alps - Brown PCB
C1 10uF 35V (25V acceptable)
C21 2200uF 25V
C23 10uF 35V
C25 100uF 10V
C29 1uF 50V
Alps Modules with 4x Discreet Diode Bridge
Alps Power & Modulator PCB: FR853
C1 10uF 16V (PAL only)
C21 2200uF 25V
C23 100uF 25V
C25 100uF 10V
C29 1uF 50V
C34 10nF (Reference only - not included)
C35 1uF 50V
C36 10uF 16V
Alps Power & Modulator PCB: SH-SH5 / FS074
C21 2200uF 25V
C23 100uF 25V
C25 100uF 10V
C29 1uF 50V
C36 10uF 16V
C37 1uF 50V
Mitsumi Power & Modulator PCB: TDK-T12V
C2 10uF 16V
C6 10uF 16V
C26 2200uF 25V
C29 100uF 16V
C31 100uF 25V
C32 10uF 16V
Mitsumi Power & Modulator PCB: MTM-8V-0 / VIX
C5 10uF 35V (25V acceptable)
C20 2200uF 25V
C21 100uF 16V
C24 100uF 10V
Mitsumi Power & Modulator PCB: TDK-T31V
C6 10uF 16V
C21 2200uF 25V
C22 100uF 16V
C25 100uF 10V
Further Information:Installation requires the console to be opened. Opening tools, soldering equipment and consumables are not included.
Suitable tools typically include screwdrivers, a soldering iron, solder, flux and desoldering equipment such as a desoldering pump or desoldering braid.
Installation requires experience with desoldering and soldering electronic components. If you are unfamiliar with these techniques, we recommend consulting a professional or referring to reputable repair guides before attempting installation.
Please note: This is an unofficial third-party repair kit and is not manufactured by, licensed by, authorised by or endorsed by Nintendo.
Product Safety:Contains small parts, choking hazard.
Not a toy - Keep out of reach of children.
Installation requires technical skill and experience with desoldering and soldering.
Observe capacitor polarity during installation. Incorrect fitting may damage the console.
Use appropriate eye protection and work in a well-ventilated area when soldering.
Allow soldering equipment and components to cool before handling.
