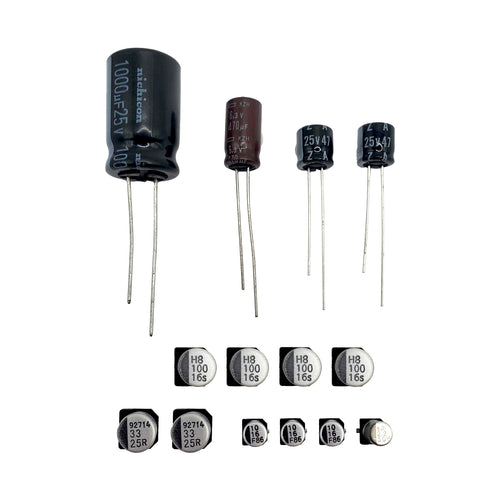

Restore your Super Nintendo Entertainment System with this capacitor replacement kit for SHVC revision logic boards.
Designed for repairing or maintaining ageing consoles, this kit contains the replacement capacitors required for compatible SNES SHVC-CPU-01 mainboards.
Features:
- Capacitor replacement set for Super Nintendo Entertainment System SHVC revision logic boards
- Compatible with SNES SHVC-CPU-01 mainboards
- Contains both through-hole and surface-mount capacitors where required
- Assembled using major brand capacitors selected for their quality and reliability
- Suitable for preventative maintenance or repair
- Requires desoldering and soldering skills for installation
Description:This capacitor replacement kit is designed for servicing compatible Super Nintendo Entertainment System SHVC revision logic boards. As consoles age, the original capacitors can deteriorate through age and use, making replacement a common maintenance task during console restoration or repair.
The kit includes replacement capacitors for the SNES SHVC-CPU-01 logic board and is assembled using major brand capacitors selected for their quality and reliability. The kit contains both through-hole and surface-mount capacitors to match the original board design.
Installation requires the console to be disassembled before the original capacitors are removed and the replacements soldered into place. Experience with desoldering and soldering both through-hole and surface-mount electronic components is recommended before attempting installation. Always observe capacitor polarity and component orientation during fitting.
Capacitor List:SHVC-CPU-01
C50 47uF 10V
C51 47uF 10V
C57 100uF 6V
C58 100uF 6V
C59 100uF 6V
C60 100uF 6V
C61 10uF 16V
C62 2.2uF 50V
C63 33uF 25V
C64 33uF 25V
C65 10uF 16V
C66 10uF 16V
C67 1000uF 25V
470uF 6.3V - For installation across the ground and output terminals of the voltage regulator.
Further Information:Installation requires the console to be opened. Opening tools, soldering equipment and consumables are not included.
Suitable tools typically include screwdrivers, a soldering iron, solder, flux and desoldering equipment such as a desoldering pump or desoldering braid.
Installation requires experience with desoldering and soldering both through-hole and surface-mount electronic components. If you are unfamiliar with these techniques, we recommend consulting a professional or referring to reputable repair guides before attempting installation.
Please note: This is an unofficial third-party repair kit and is not manufactured by, licensed by, authorised by or endorsed by Nintendo.
Product Safety:Contains small parts, choking hazard.
Not a toy - Keep out of reach of children.
Installation requires technical skill and experience with desoldering and soldering.
Observe capacitor polarity during installation. Incorrect fitting may damage the console.
Use appropriate eye protection and work in a well-ventilated area when soldering.
Allow soldering equipment and components to cool before handling.
