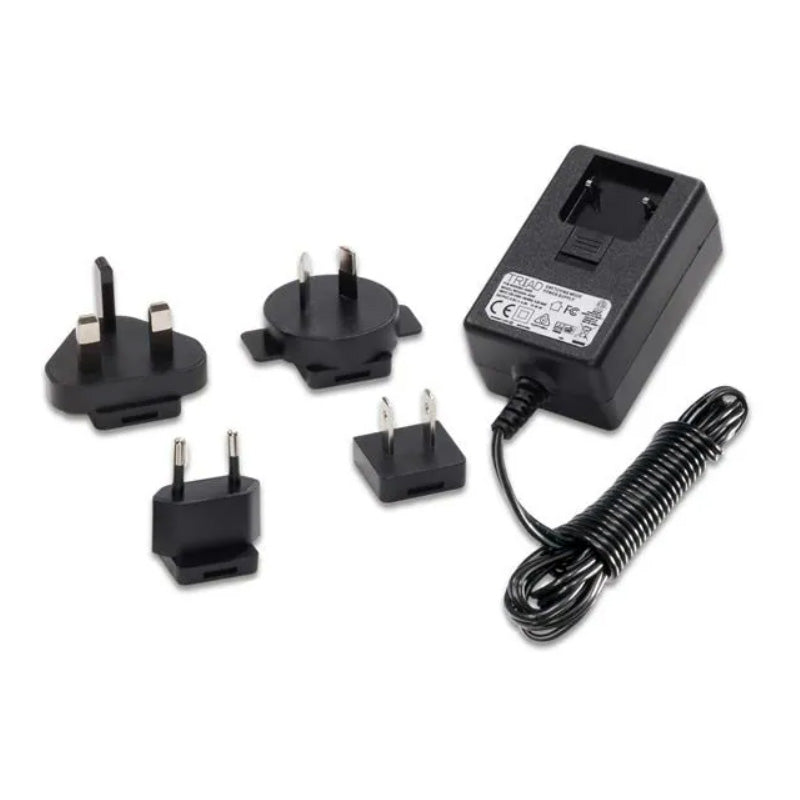

Features:- Triad Magnetics WSX120-2000-R13 switch-mode power supply, 12V DC 2A

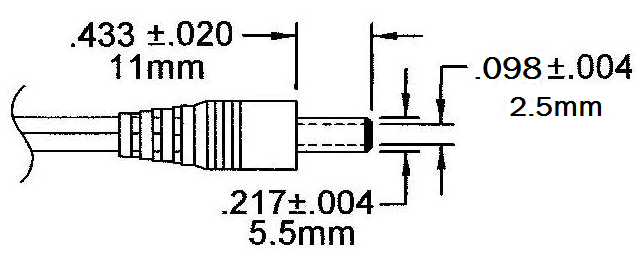

- 5.5 x 2.5mm barrel, centre negative
- Replacement for the original HES-ACA-02/03 adaptor on the US TurboGrafx-CD interface unit (CD dock)
- Also suits other 12V 2A centre-negative 5.5 x 2.5mm devices

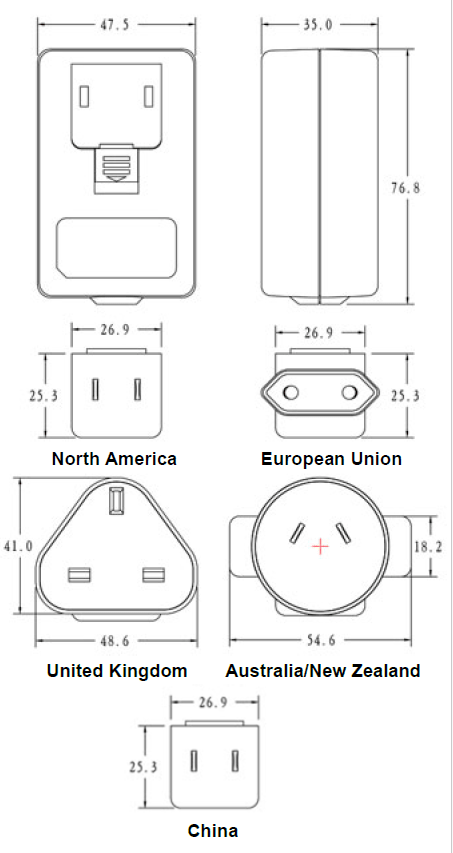

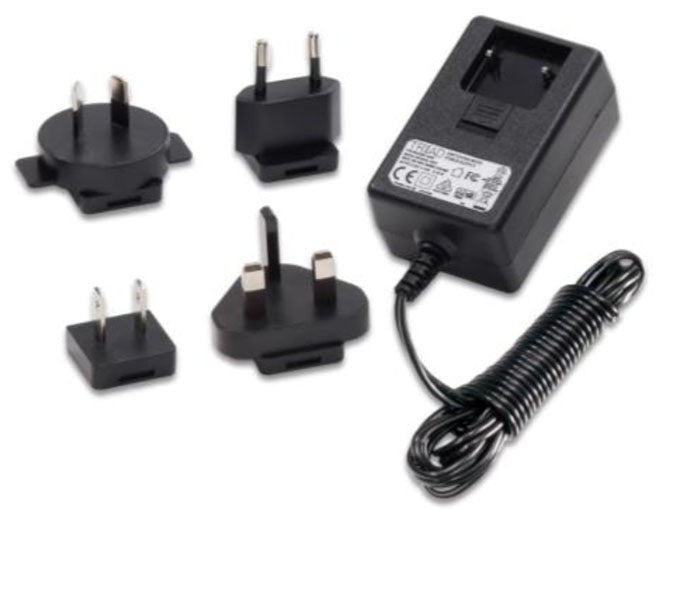

- Interchangeable input plugs supplied: UK, EU, North America and Australia/New Zealand (China plug on older date codes)
- Universal 100-240V AC input, Class II double insulated, Level VI efficiency
- Over-voltage and short-circuit protection; 1.8m (6ft) 18AWG output lead
- UL / TUV / GS / RCM approved; 5-year Triad warranty
Description:This Triad Magnetics WSX120-2000-R13 is a high-quality regulated 12V 2A power supply with a 5.5 x 2.5mm centre-negative plug.
In the retro world it is the recommended replacement for the original HES-ACA-02/03 adaptor that powers the US NEC TurboGrafx-CD interface unit (CD dock). It also suits other equipment needing 12V at up to 2A on a 5.5 x 2.5mm centre-negative plug, such as some scalers, switches and LED projects - always check the voltage, polarity and plug of your device first.
Triad supplies are well regulated with low ripple and full safety approvals, a big step up from generic adaptors.
It has a universal 100-240V input with interchangeable UK, EU, US and AU/NZ wall plugs.
This is an unofficial product which is not manufactured by, endorsed, sponsored or licensed by NEC or Hudson Soft.
Safety information:
- Not a toy. Keep out of reach of children.
- Indoor use only. Keep dry.
- Check voltage, polarity and plug type match your device before use.
- Do not use if the cable or plug is damaged.
Manufacturer: Triad Magnetics. UK importer: Assecure Ltd (ZedLabz), The Outbuildings, Grove Farm Road, Maldon, Essex, CM9 8LR, UK · support@zedlabz.com
EU responsible person (for authorities only): FFB Estonia OÜ · Päevalille tn 6-15, Haabersti linnaosa, 13517 Tallinn, Harju maakond, Estonia · finance_estonia@fulfillment-box.com
