Features:
- Replacement controller port fuse for PS1
- Can resolve a common issue where controllers are not working on the console.
- Replaces fuse at board position PS605
- 0.7A 50V
- Requires internal soldering.
Description:
Resolve controller problems on a PS1 console by replacing the fuse on the motherboard.

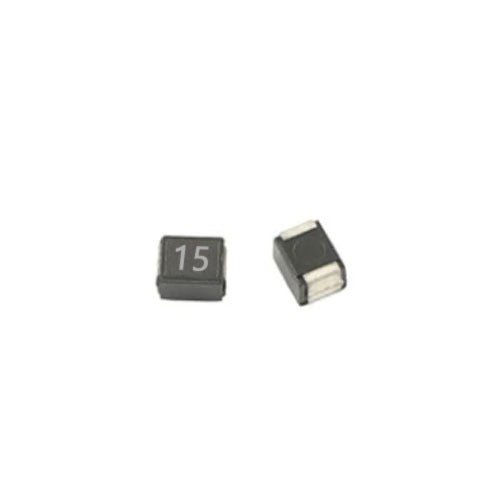

The Fuse will be in the position marked PS605 and normally have a 15 printed on the top, it is secured by two solder pads and relatively easy to remove and replace, soldering required.
The fuse labelled F1 on the controller port PCB board commonly goes wrong from using third party / damaged controllers, or from inserting and removing controllers with the console powered on.
In most cases replacing the fuse is enough to fix the controllers and get them working on the console, you can test the original fuse with a simple continuity test (beep test) using a multi-meter.
Requires internal soldering, console must be opened to install, soldering iron and solder required (not included)
A Philips #1 screwdriver will be needed to open up the console shell (not included)
DIY part. This is a DIY part for you to fit yourself. Fitting needs care and, where stated, soldering or other technical skills – see our
fitting guides. We're not responsible for damage caused by incorrect fitting, or for an existing fault in your console. Replacing a part may not fix your fault, as faults can have more than one cause. This doesn't affect your statutory rights.
Safety information:
- Not a toy. Keep out of reach of children.
- Mains power unit inside – unplug before work; never open it.
- Small parts – choking hazard.
- Soldering required – ventilate, beware hot iron.
- Switch off, unplug and remove any batteries before fitting.
- Fits listed models only – do not force.
