Replacement power switch for Game Boy Advance SP (GBA SP) handheld premium thin flex PCB mod | Helder Game Tech

Regular price £4.61

Klarna Klarna flexible payment options available (Minimum spend applies, selected countries only)

👍 Shop with confidence - We're here for you 🤗

  • 🚚 Tracked shipping (limitations apply) Learn more
  • ⭐⭐⭐⭐⭐ Rated "Excellent" on Trustpilot
  • 📦 Fast dispatch - Normally same business day !
  • 🛡️ 2 Year warranty (terms apply) - More info
  • 🤑 Join our rewards program > Get discounts !
👮‍♀️ No import charges for many countries !
  • 🏦🇪🇺/🇳🇴/🇦🇺 - We are tax registered in the EU, Norway & Australia - Prices include VAT/GST tax - More info
  • 🏦🇺🇸 - No import fees/sales tax on orders under $800 USD for US customers
Carbon-neutral shipping with Shopify Planet
All deliveries are carbon neutral
Powered by Shopify Planet


Features:

- Premium replacement power switch flex PCB for Game Boy Advance SP consoles.
- Mod part replaces the original switch without console modification.
- Ideal for replacing corroded and faulty switches.
- Ultra thin flex PCB with stiffener.
- Requires soldering to install.

Description:

Power on your retro Game Boy with a premium replacement on / off power slider switch flex PCB, compatible with Nintendo Game Boy Advance SP consoles.

A replacement power switch can fix some power issues often caused by corrosion or failure of the on/off switch.

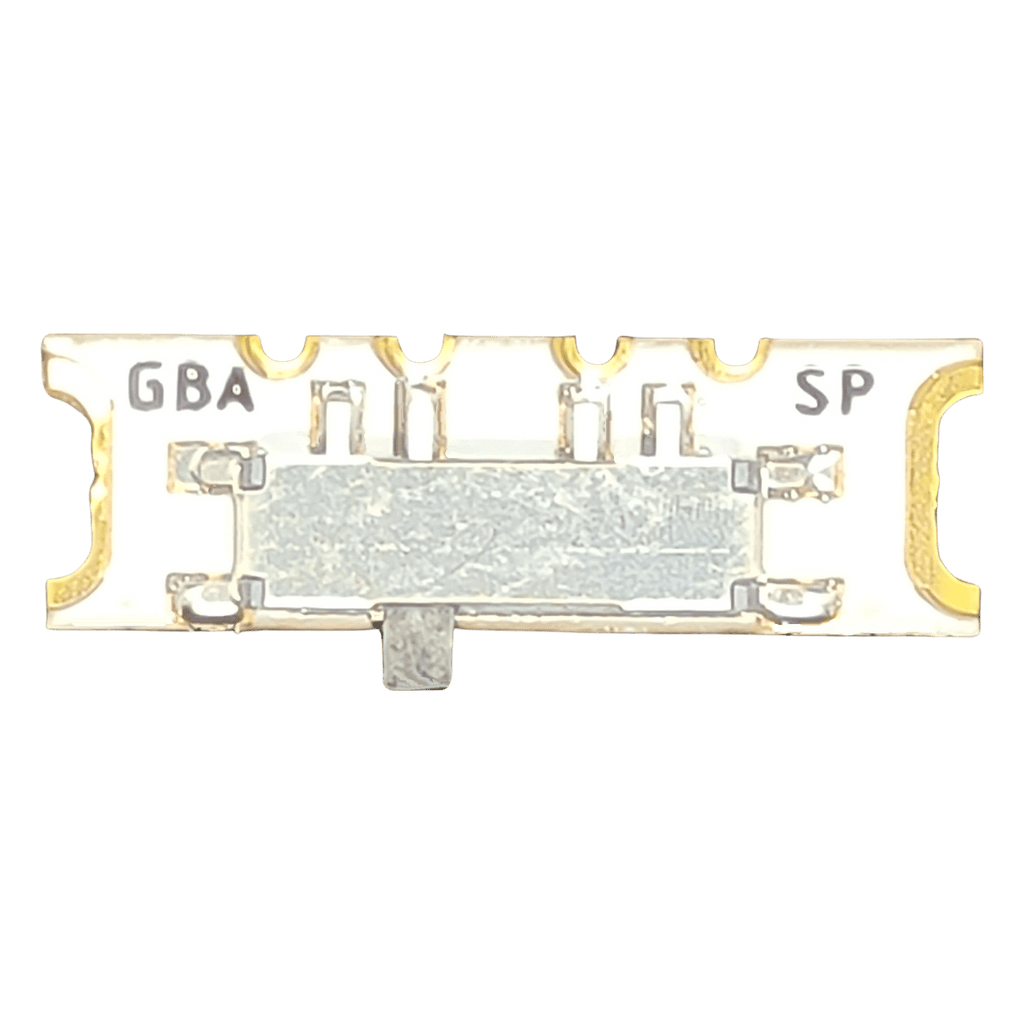

This premium version comes with the switch pre-soldered to an ultra thin PCB flex with stiffener, giving you the easiest possible install thanks to the close contact between the flex PCB solder pads and the solder points on the mainboard.

No console modification is needed to use this part, the switch flex PCB aligns with all of the original solder points where the original switch is removed from.

Once the switch is installed it will be in the correct position for the plastic power slider button to operate the switch.

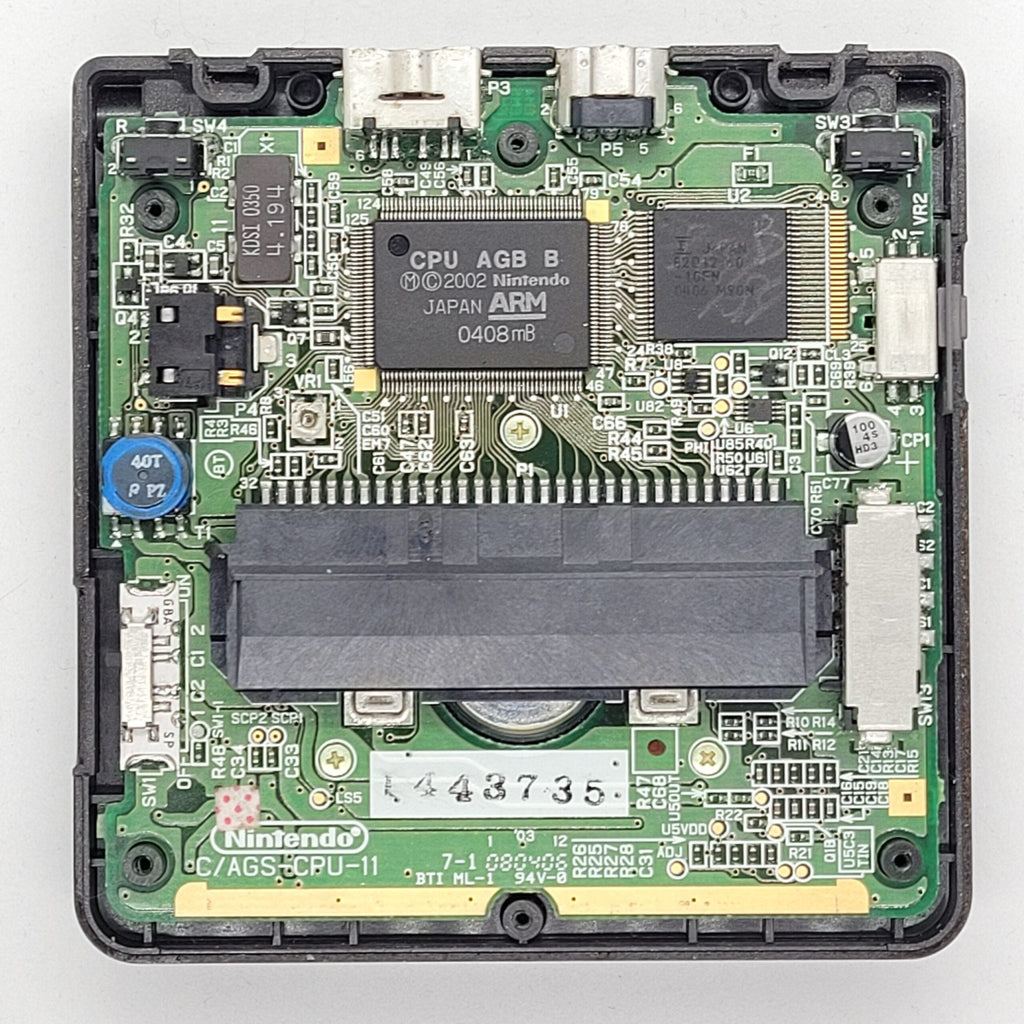

Requires basic soldering to install, the switch comes pre-mounted to the Flex PCB, the Flex PCB solder pads must be soldered to the console motherboard in place of the old Switch.

Note: Color may vary.
Platform Nintendo Game Boy Advance SP
Colour
Manufacturer ZedLabz
EAN 5056026455732
Weight 10g

Customer Reviews

Based on 2 reviews
0%
(0)
0%
(0)
0%
(0)
50%
(1)
50%
(1)
m
matthew dunston
Stem too long and brittle

Got my switch in, and it feels like the switch itself is a little too big for where it sits. The stem to the actual switch seems to be too long, and it's very brittle after turning it on only a few times the stem snapped off and there looks like no good play to reattach it, now I need to try and find another one. Not sure if I got unlucky or not as helders other stuff is great but I'm not sure if I would recommend this one.

M
Memphis
It works, but...

...my switch came with a stem nearly 3x too long and wouldn't fit in the shell. I opted to clip and sand the power switch cover rather than the switch, to avoid damaging it. Another disappointment compared to the original is that it "clicks" into place in three positions rather than two (on-off-off).
