3 Capacitor kit for GameBoy Color power, sound & dim screen colour internal replacement | ZedLabz

Features:

- Capacitor set for Nintendo Game Boy Color (GBC).
- Includes 3 Panasonic SMD capacitors compatible with the Game Boy Color mainboard.
- S Series capacitors with 40°C to 80°C operating temp and lifetime rating of 1000 hours @ 85°C
- Can fix low volume output, dim LCD screen issues or no power.
- Requires internal soldering.

Description:

This repair kit includes 3 capacitors needed to resolve problems such as the Game Boy Color not powering on, experiencing volume issues or a dim LCD screen.

The 3 capacitor kit are compatible with Nintendo Game Boy Color console and are the same Panasonic capacitor series S originally used by Nintendo.

Included Panasonic capacitors in the following values:

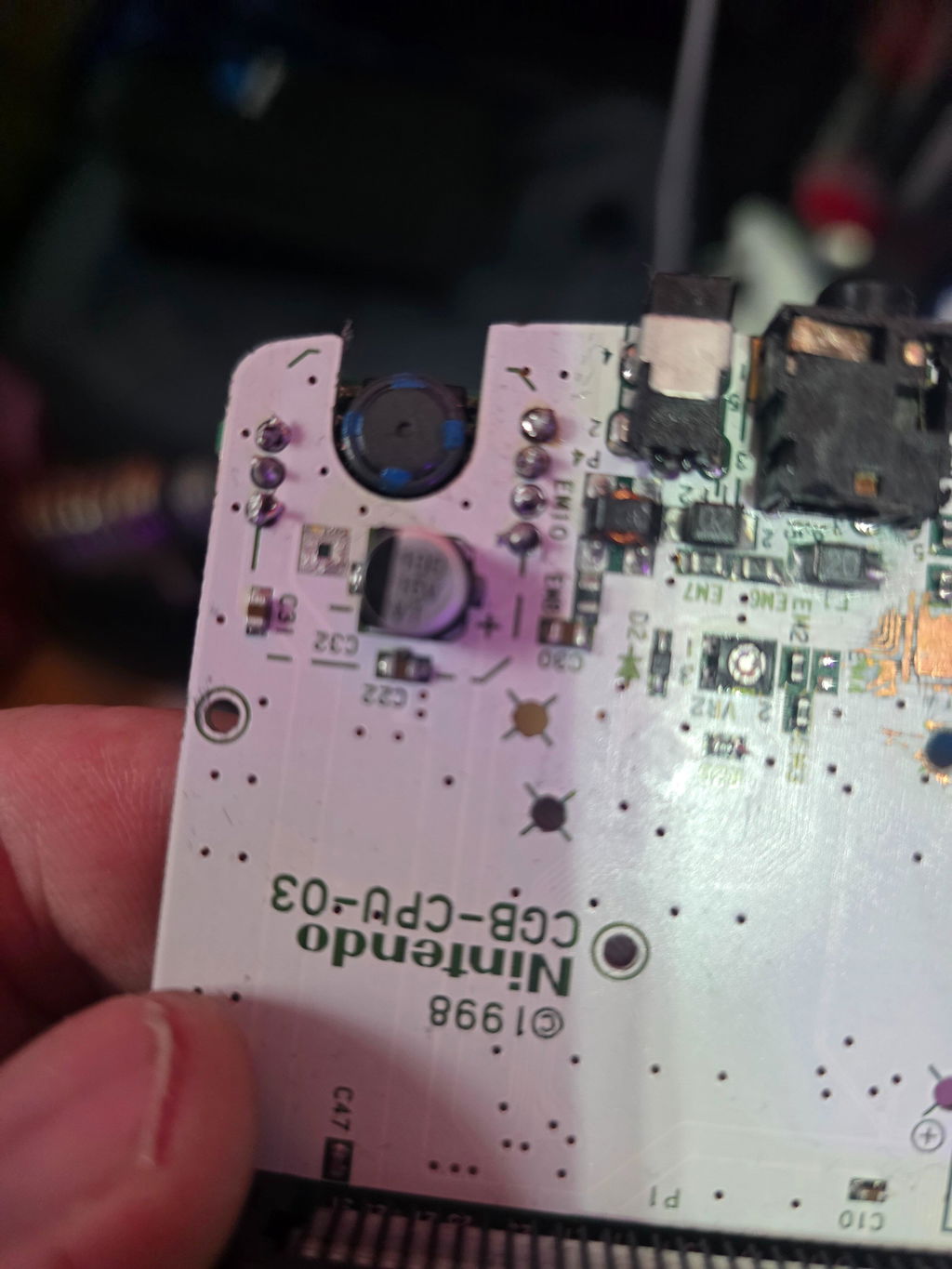

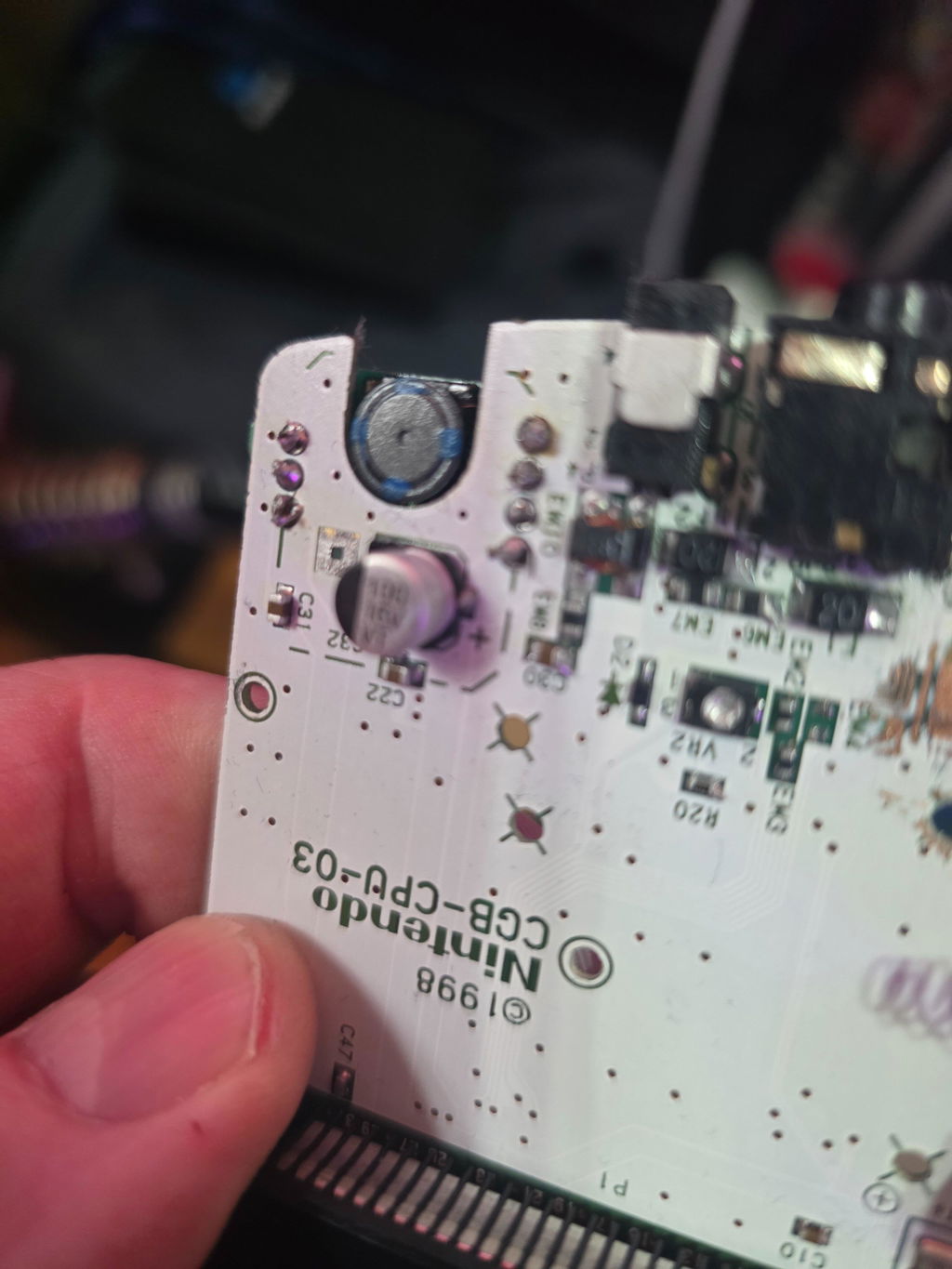

1 x 100uf 6.3V (Motherboard location C32)
1 x 100uf 4V (Motherboard location C38)
1 x 22uf 16V (Motherboard location C35)

A reasonable level of soldering ability are required to install the replacement capacitors. The console must be opened to install.

A Philips #00 and Tri-wing security screwdriver are required to open the console (Not included).

Soldering iron, solder & desoldering braid required to fit capacitors, (not included).
